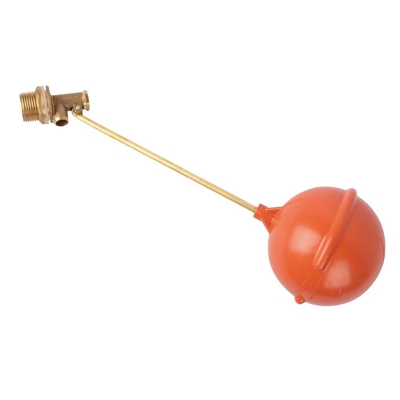

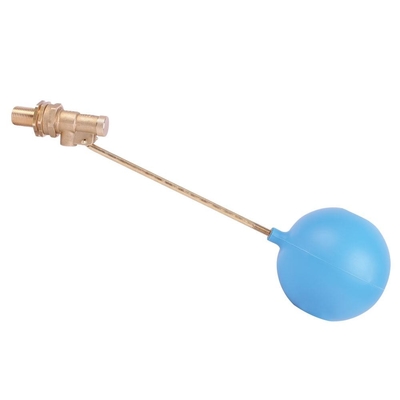

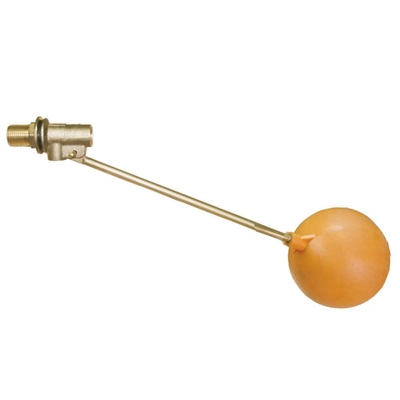

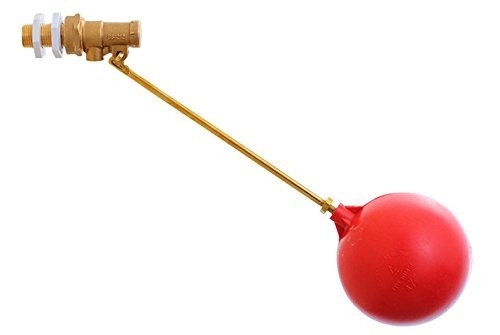

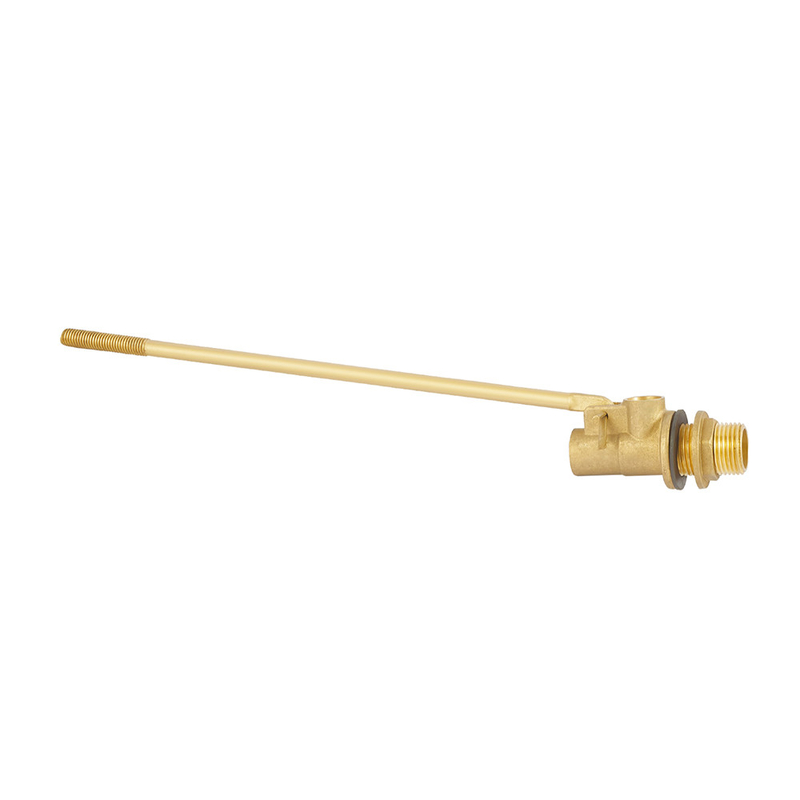

Name: MNPT Connection 1/2" Brass Float Ball Valve With Low Pressure Plastic Cock
Brand: Qishang
SKU: Qishang
Price: 1.55 USD
Availability: InStock
Rating: 4.9 (146 reviews)

Home Products Brass Float Valve

MNPT Connection 1/2" Brass Float Ball Valve With Low Pressure Plastic Cock

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Qishang

Payment & Shipping Terms:

Minimum Order Quantity:	3000 pieces
Price:	$1.55/pieces 3000-9999 pieces
Packaging Details:	box , carton and wood pallets for 1 inch water tank cheap hydraulic control copper float valve<br>customize are welcomed
Supply Ability:	5000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Warranty:	3 Years	Type:	Float Valves
Customized Support:	OEM, ODM, OBM, Software Reengineering	Application:	General
Temperature Of Media:	Normal Temperature	Power:	Hydraulic
Media:	Water	Port Size:	1/2
Structure:	Float	Body Material:	Brass
Product Name:	Control Copper Float Valve	Port:	Ningbo/shanghai
Highlight:	MNPT Connection Brass Float Ball Valve , Plastic Cock Brass Float Ball Valve , MNPT Connection brass ballcock valve

1/2" FLOAT BALL VALVE FOR WATER TANK With Low Pressure Plastic Brass Cock

Description

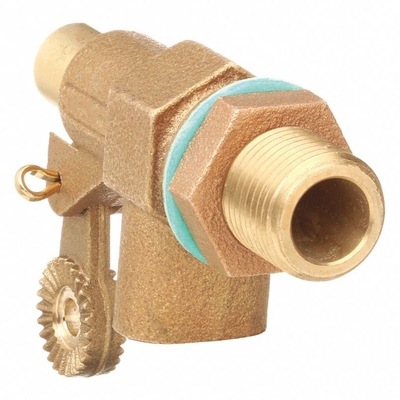

Float Valve, Mounting Bulkhead, Size 3/4 in, Connection Type MNPT, Rod Thread 1/4 in -20, Rod Length 2 in, Body Material Brass,
Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 32.5 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 40 gpm,
Max. Pressure 100 psi, Max. Temp. 180 Degrees F, Includes Locknut and Gasket, Valve Material Brass

Heavy duty mechanical float valve for commercial, industrial, and agricultural applications used as inlet valve for controlling high-capacity water flow. Ideal for using in air conditioning and irrigation systems. Easy to adjust and maintain. It has a bronze body construction to provide for durability, longer service life and corrosion resistance, with a diameter of ½ inches. The water level can be set using the vertical adjuster. This float valve is designed with interchangeable parts to make replacement easy, for simple fluid level control within open tanks and vessels.

Item	Float valve	Pipe size	1/2", 3/4"
Connection type	MNPT	Body material	Brass
Valve material	Brass	Valve flow- flow(1)	32.5gpm
Rod length	2 in	Valve flow - pressure(1)	65psi
Max. pressure	100psi	Valve flow - flow(2)	40gpm
Rod thread	1/4 in - 20	Valve flow - pressure(2)	85psi
Mounting	Bulkhead	Max. Temp.	180 degree F
Includes	Locknut and gasket	Size	1/2", 3/4"
