Name: Bulkhead MNPT Brass Float Valve brass fill valve 3/4 In 65gram
Brand: Qishang
SKU: qs235
Price: 1.05 USD
Availability: InStock
Rating: 4.5 (146 reviews)

Home Products Brass Float Valve

Bulkhead MNPT Brass Float Valve brass fill valve 3/4 In 65gram

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Qishang
Model Number:	qs235

Payment & Shipping Terms:

Minimum Order Quantity:	3000 pieces
Price:	$1.05/pieces 3000-9999 pieces
Packaging Details:	box , carton and wood pallets for globe approved upright type fire sprinkler
Supply Ability:	5000000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Material:	Brass	Warranty:	2 Years
Weight:	65gram	Size:	1/2inch
Port:	Ningbo Or Shanghai
Highlight:	Bulkhead MNPT Brass Float Valve , Brass Float Valve 65gram , Brass Fill Valve 65gram

Description

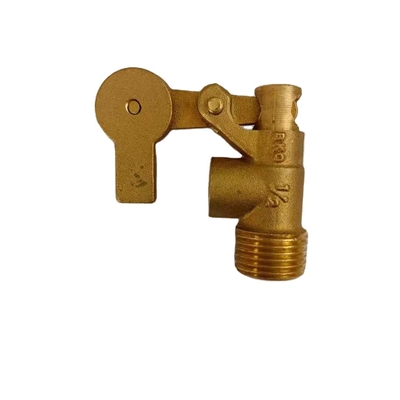

Float Valve, Mounting Bulkhead, Size 3/4 in, Connection Type MNPT, Rod Thread 1/4 in -20, Rod Length 2 in, Body Material Brass,
Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 32.5 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 40 gpm,
Max. Pressure 100 psi, Max. Temp. 180 Degrees F, Includes Locknut and Gasket, Valve Material Brass

Heavy duty mechanical float valve for commercial, industrial, and agricultural applications used as inlet valve for controlling high-capacity water flow. Ideal for using in air conditioning and irrigation systems. Easy to adjust and maintain. It has a bronze body construction to provide for durability, longer service life and corrosion resistance, with a diameter of ½ inches. The water level can be set using the vertical adjuster. This float valve is designed with interchangeable parts to make replacement easy, for simple fluid level control within open tanks and vessels.

Item	Float valve	Pipe size	1/2", 3/4"
Connection type	MNPT	Body material	Brass
Valve material	Brass	Valve flow- flow(1)	32.5gpm
Rod length	2 in	Valve flow - pressure(1)	65psi
Max. pressure	100psi	Valve flow - flow(2)	40gpm
Rod thread	1/4 in - 20	Valve flow - pressure(2)	85psi
Mounting	Bulkhead	Max. Temp.	180 degree F
Includes	Locknut and gasket	Size	1/2", 3/4"
